FILTRE ACTIVE (Active Filter: Butterworth)

Active Filter: Butterworth

(1st order, 6 dB/octave, Lowpass)

R=4.7k-10 kOhm
C=1.000/(2*pi*Fc*R)

Units: R [Ohm], C [F], Fc [Hz]

Active Filter: Butterworth
(1st order, 6 dB/octave, Highpass)

C=4.7n-10nF
R=1.000/(2*pi*Fc*C)
Units: R [Ohm], C [F], Fc [Hz]

Active Filter: Butterworth

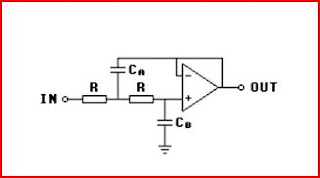

(2nd order, 12 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=1.414/(2*pi*Fc*R)
Cb=0.7071/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

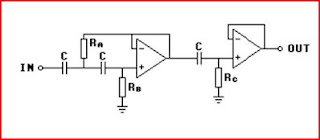

Active Filter: Butterworth
(2st order, 12 dB/octave, Highpass)

C=4.7n-10nF
Ra=0.7071/(2*pi*Fc*C)
Rb=1.414/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

Active Filter: Butterworth
(3st order, 18 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=2.000/(2*pi*Fc*R)
Cb=0.500/(2*pi*Fc*R)
Cc=1.000/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

Active Filter: Butterworth
(3st order, 18 dB/octave, Highpass)

C=4.7n-10nF
Ra=0.500/(2*pi*Fc*C)
Rb=2.000/(2*pi*Fc*C)
Rc=1.000/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

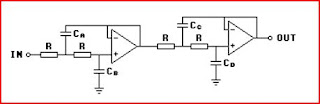

Active Filter: Butterworth
(4th order, 24 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=1.0824/(2*pi*Fc*R)
Cb=0.9239/(2*pi*Fc*R)
Cc=2.6130/(2*pi*Fc*R)
Cd=0.3827/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

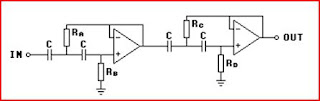

Active Filter: Butterworth
(4th order, 24 dB/octave, Highpass)

C=4.7n-10nF
Ra=0.9239/(2*pi*Fc*C)
Rb=1.0824/(2*pi*Fc*C)
Rc=0.3827/(2*pi*Fc*C)
Rd=2.6130/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

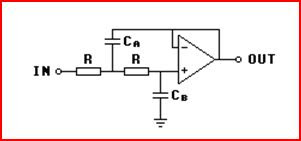

Active Filter: Bessel
(2nd order, 12 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=0.9076/(2*pi*Fc*R)
Cb=0.6809/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

-->

Active Filter: Bessel
(2st order, 12 dB/octave, Highpass)

C=4.7n-10nF
Ra=1.1017/(2*pi*Fc*C)
Rb=1.4688/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

Active Filter: Bessel
(3st order, 18 dB/octave, Lowpass)

 R=4.7k-10 kOhm
Ca=0.9548/(2*pi*Fc*R)
Cb=0.4998/(2*pi*Fc*R)
Cc=0.7560/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

Active Filter: Bessel
(3st order, 18 dB/octave, Highpass)

C=4.7n-10nF
Ra=1.0474/(2*pi*Fc*C)
Rb=2.0008/(2*pi*Fc*C)
Rc=1.3228/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

Active Filter: Bessel
(4th order, 24 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=0.7298/(2*pi*Fc*R)
Cb=0.6699/(2*pi*Fc*R)
Cc=1.0046/(2*pi*Fc*R)
Cd=0.3872/(2*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

Active Filter: Bessel
(4th order, 24 dB/octave, Highpass)

C=4.7n-10nF
Ra=1.3701/(2*pi*Fc*C)
Rb=1.4929/(2*pi*Fc*C)
Rc=0.9952/(2*pi*Fc*C)
Rd=2.5830/(2*pi*Fc*C)
Units: Rx [Ohm], C [F], Fc [Hz]

Active Filter: Linkwitz
(4th order, 24 dB/octave, Lowpass)

R=4.7k-10 kOhm
Ca=Cc=2*Cb
Cb=Cd=1/(2*sqr(2)*pi*Fc*R)
Units: R [Ohm], Cx [F], Fc [Hz]

Active Filter: Linkwitz
(4st order, 24 dB/octave, Highpass)

C=4.7n-10nF
Ra=Rc=1/(2*sqr(2)*pi*Fc*C)
Rb=Rd=2Ra
Units: Rx [Ohm], C [F], Fc [Hz]
